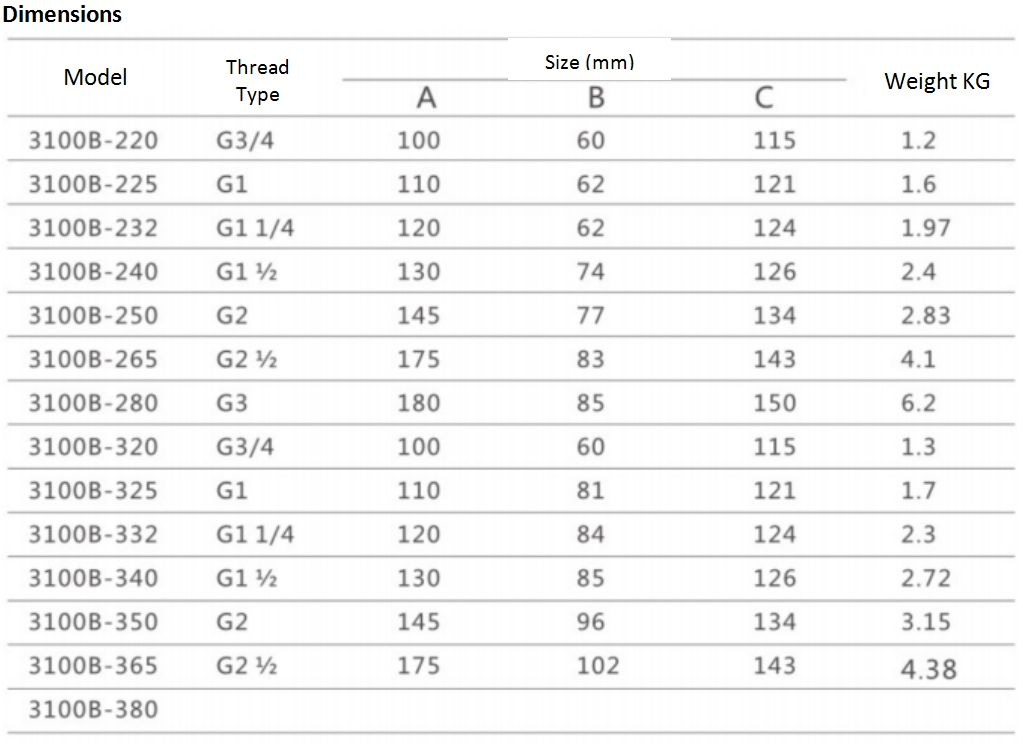

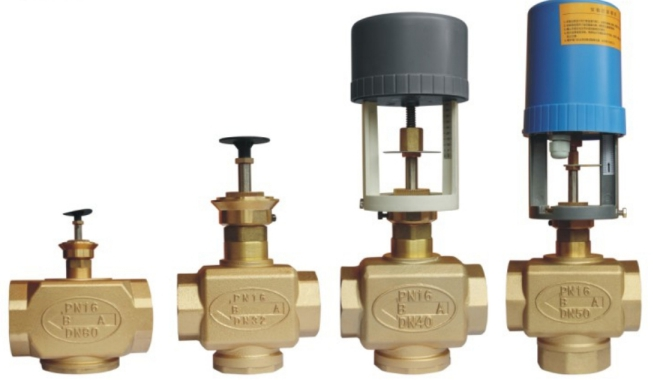

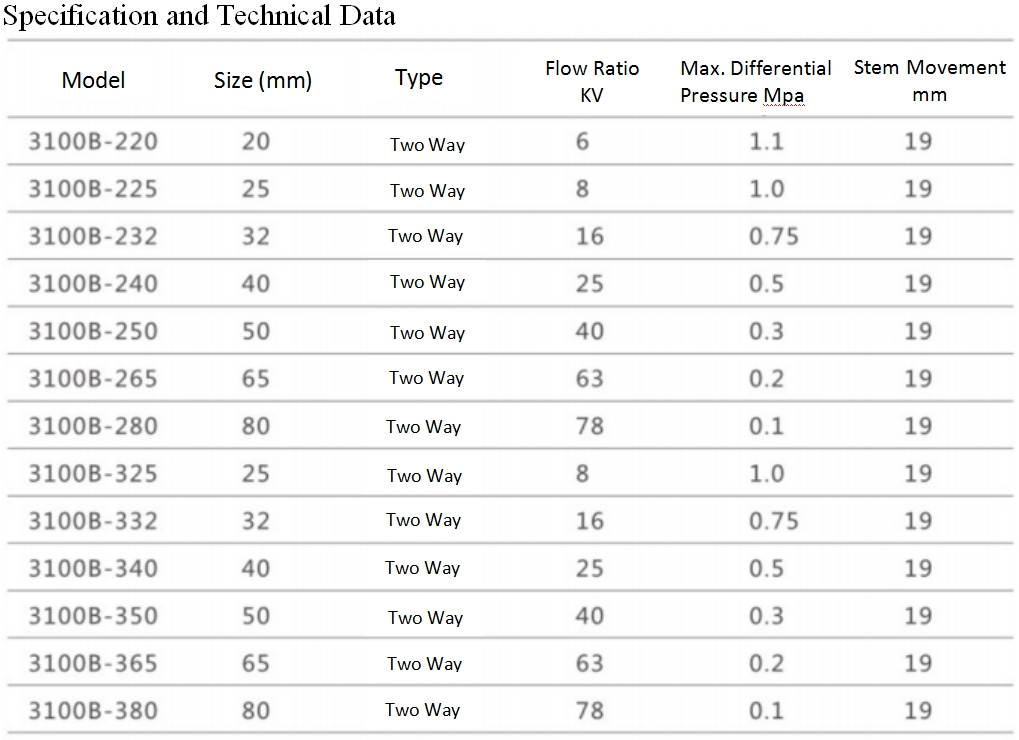

TVJ 3100B (C) Series Valve

TVJ 3100B (C) Series Valve

The TVJ 3100B and TVJ 3100C series cast copper valves are equipped with the TQM3100A electronic drive control unit to regulate the flow of cold water and hot water. Widely used in central air conditioning, heating, water treatment, industrial processing industries and other series of liquid control.

Installation and maintenance

The lower part of the stem is the valve closing direction

Before the valve is closed, the pipe should be cleaned, and there should be no scale, metal sheets and other debris left during welding.

When the pipe is connected to the valve, it must be concentric and free from vibration. The direction of the water flow should be consistent with the one indicated on the valve body.

When the drive is mounted vertically on the valve body, avoid installing the drive under the valve body, leaving enough space for routine maintenance (such as removing the drive)

The power supply must be cut or isolated when the valve is maintained. The water system should be free of pressure.

Material description and technical data

Stem seal: four-layer V-type and O-type combination fluorine seal, PTFE seal

Stem: Stainless steel AISI304

Spool: brass or ICr18Ni9Ti

The rest of the parts are brass

Pressure: 1.6MPa

Working medium: water

Fluid temperature: -20 ° C - + 150 ° C

Connection method: BSP parallel internal thread type (BS2)

Flow rate characteristics: equal percentage / linear

Leakage: less than KV worth 0.05%

The QD-3100C series is pressure balanced and can be equipped with a small drive

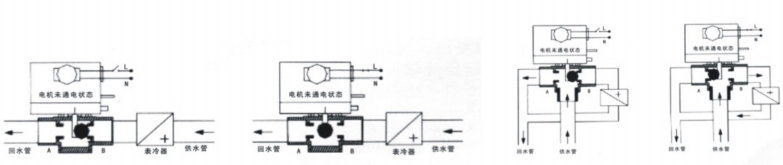

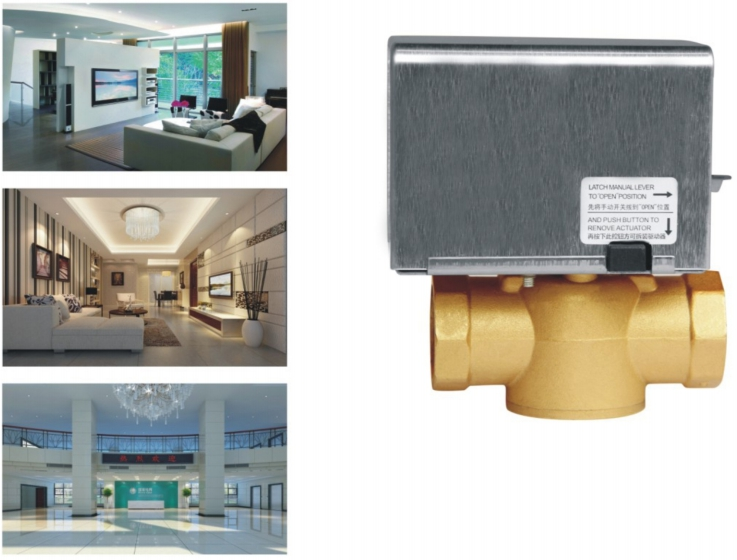

TFV2016 Split Electric Valve

The TFV2016 series split electric valve is used to control the central air conditioning system, the opening and closing of the heating system piping, to achieve the purpose of controlling the indoor temperature. The control valve is driven by a one-way hysteresis synchronous motor. The spring is reset. When the valve is not working, it is in the normally closed state. When it is necessary to work, the temperature control valve provides a valve opening signal, so that the electric valve is connected to the AC power source to act, open the valve, cold water or hot water enters the fan coil to provide air or heating to the room; when the room temperature reaches the temperature controller When the value is set, the thermostat de-energizes the electric valve, the return spring de-energizes the electric valve, and the return spring closes the valve, thereby cutting off the flow of water into the fan coil. By closing and opening the valve, the room temperature is always maintained within the temperature setting range.

Installation instructions

For high-rise buildings, a pressure reducing valve should be installed on the bottom branch pipe

The motor housing should prevent dripping from penetrating, so the drive must not be under the pipe when the valve is installed.

When the valve is mounted on a vertical pipe, the motor casing should prevent dripping

Manual joystick: When the handlebar moves slowly along the arrow and holds it in the notch, the valve is normally open. Whenever the current passes the electric valve for the first time, the manual lever will be reset to the automatic position.

If the drive is not pre-installed on the valve body, you need to install it. Push the drive into the lower groove in the direction of the arrow. Press the black button on the side of the drive and release it on the valve body to install it. If you need to disassemble, please repeat the appeal operation.

Note: The direction of water flow should be the same as the arrow on the valve body; when installing, the drive should not be used as the fulcrum of the force.

Material Description

Body material: forged brass

Stem material: stainless steel

Sealing material: NBR

Drive chassis: engineering plastics

Drive cover: aluminum alloy

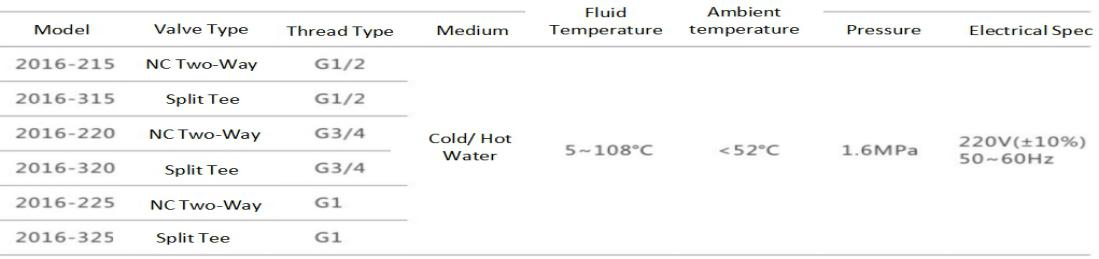

Specification and Technical Data

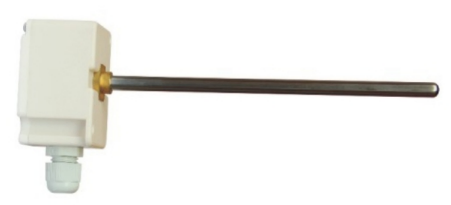

JSW 80 Series Temperature Sensor

The temperature sensor uses NTC thermistor as a temperature sensing element and is produced by a precision sealing process. It has the advantages of high sensitivity, stabilizer, corrosion resistance, long life and installation. Suitable for any harsh environment such as high, low temperature and humidity. The temperature sensor quickly and accurately tests the temperature of the air and water and transmits the signal to the control system for accurate control of water and air temperature.

JSB40H series transformer

These transformers are used in motor drives, grading controllers and other low voltage control circuits. Provides rated secondary output at rated load for proper operation of components in the system

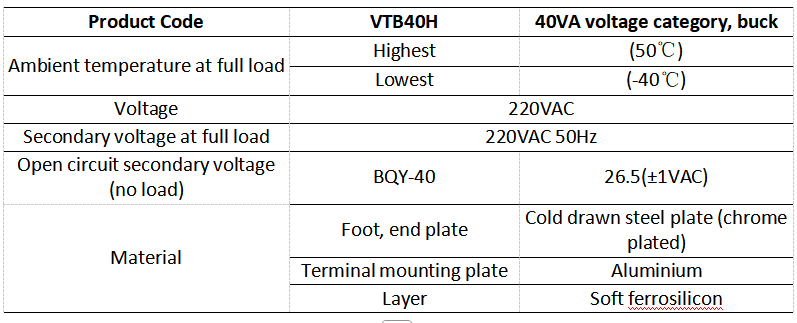

Specification

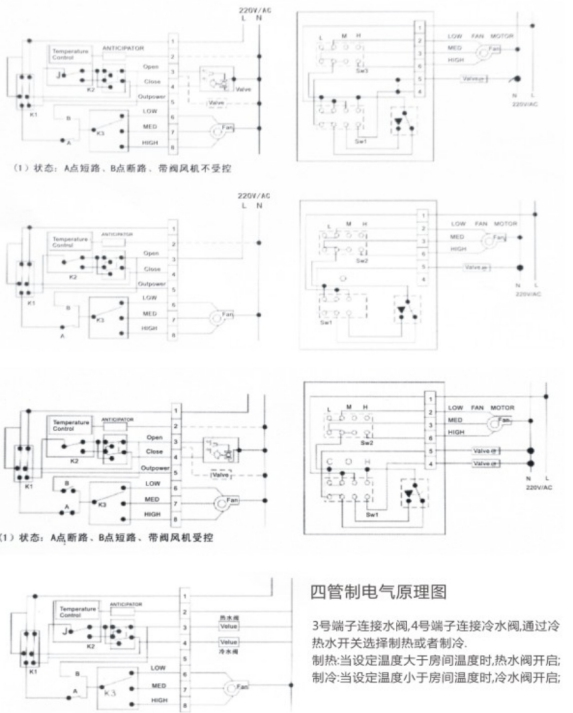

JS5-1A system mechanical thermostat controller

The JS5-1A thermostat controller is used in commercial, industrial and civil buildings to control the central air conditioning end coil motor and water valve for heating and cooling. Keep the environment of the controlled place constant within the set temperature range, and set the dial of the temperature setting to the desired constant temperature position.

Three-speed fan coil wind speed, three-wire electric valve, two-wire electric valve, can also be connected to solenoid valve, switch type damper or three-line type damper.

Features: Inflatable membrane box temperature sensing element, large dial and toggle switch, easy to operate. The precision transmission mechanical structure can guarantee long life work. The Type 86 standard installation dark box (60cm) is easy to install.

Technical Parameters

Sensor: Inflatable bellows

Rated voltage: 220VAC 110VAC

Rated current: 3A

Constant temperature range: 10-30 ° C

Temperature deviation: less than 1 °C at 25 ° C

Materials and Colors: The base, cover and dial are white ABS engineering plastics. The toggle switch is grayish white.

Ambient humidity: less than 92 ° C (no condensation)

Packing quantity: 50

Outer box size: 46*28*28 (length * width * height)

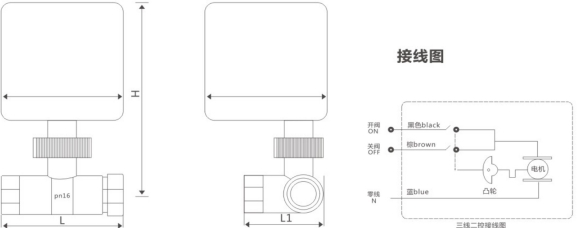

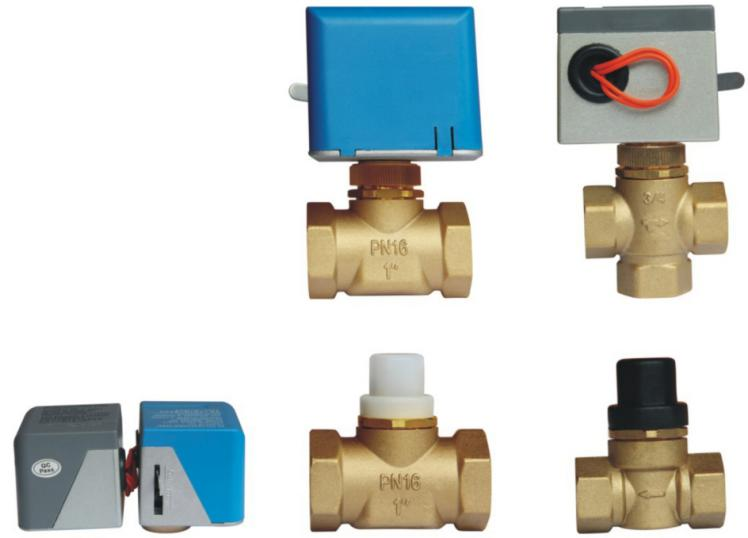

Vk7012 series fan coil electric valve

Vk7012 series fan coil electric valve is used to control the on/off of cold water/hot water of central air-conditioning fan coil. It has reliable performance and beautiful appearance. Brass forged valve body and silver-white metal drive housing accurately control HVAC central air-conditioning water. System piping, fan coil channel and flow rate.

Product Features

Flexible application, low noise and constant torque.

The amount of debugging and maintenance in the series can be controlled manually.

The installation takes up less space and can be installed close to the wall.

Corrosion resistant, long life and small size.

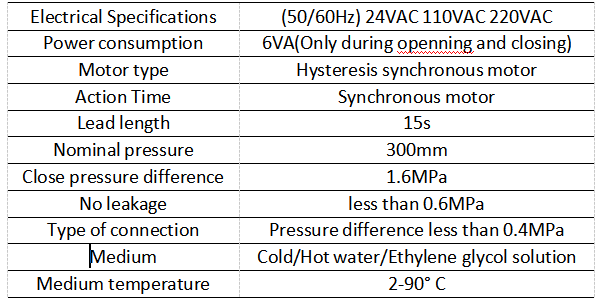

Technical Data

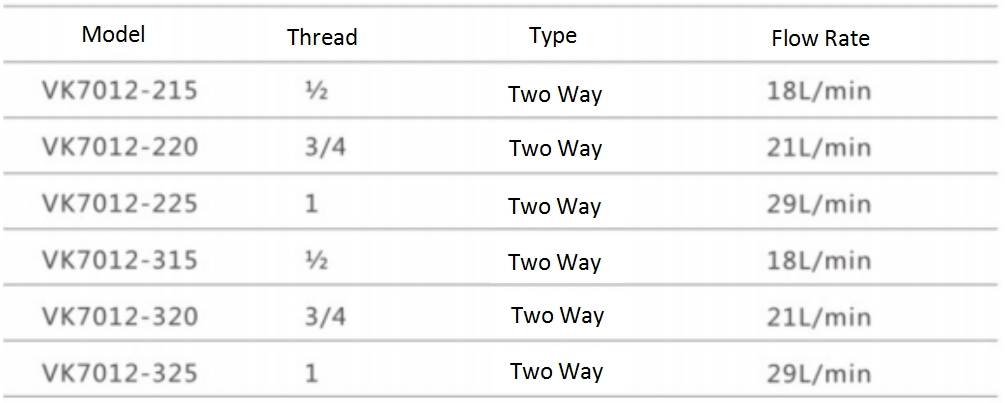

Specification

Installment

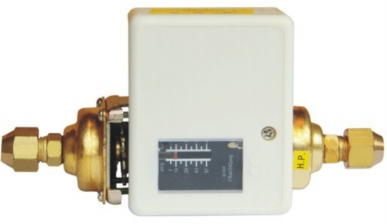

JSP74JAH differential pressure controller

The JSP74JAH differential pressure controller combines two pressure elements with high sensitivity, which, when changed, cause the switching mechanism to act to control equipment such as motor-driven valves. The switching mechanism provides SPDT non-fast sitting (floating) action, so the shared movable contact will contact one of the two fixed contacts or stay in between (meta contact).

Application range

1. JSP74JAH differential pressure controller is applied to the water system to control the pressure difference between the water pipe and the return pipe. After the controller's SPDT floats the contact point, the motor drives the longitudinal valve. A typical application is to install the valve in a bypass line near the system pump. When the system pressure difference increases and exceeds the controller set value, the valve is then opened larger, more water is diverted through the bypass valve, so that the system pressure difference is reduced, the pressure difference is reduced, the valve starts to close and the system is closed. The pressure difference increases.

2. In case of operational errors, possible systems (alarms, monitoring systems) that can cause personal injury or property damage, and alert when out of control. It is the responsibility of the installer to add facilities (safety, limit control) and protect them.

Technical Parameters

1. One-way double valve, fully enclosed Penn switch

2. 1/4" horn pressure riser is connected to the haptic element for easy installation on site

3. Direct reading scale can quickly determine the set point

4. Change the differential pressure setting without moving the cover

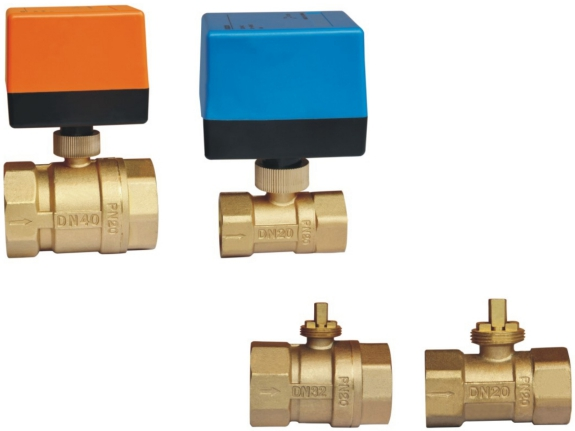

Bv2011 series electric ball valve

Bv2011 series electric ball valve is suitable for on-off control of HVAC system, consisting of electric drive and valve. The drive (actuator) is driven by the same card motor, and the action is stable. The built-in limit contact point can make the valve power off when it is fully open or fully closed. The valve body is made of brass and the surface is nickel plated.

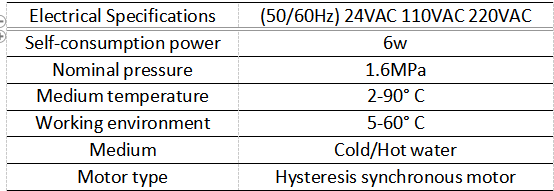

Technical Data

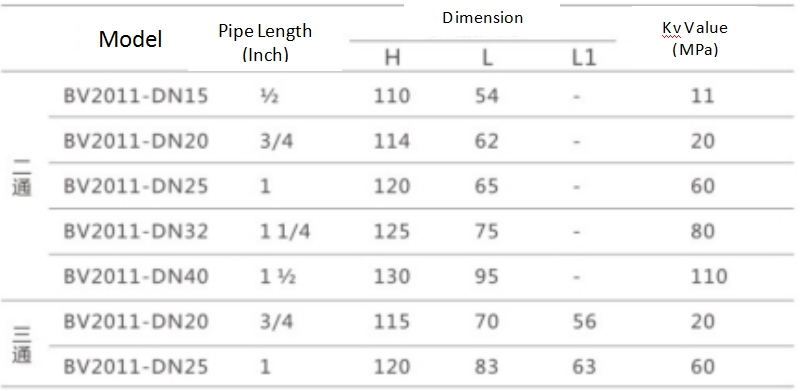

Specification of Body

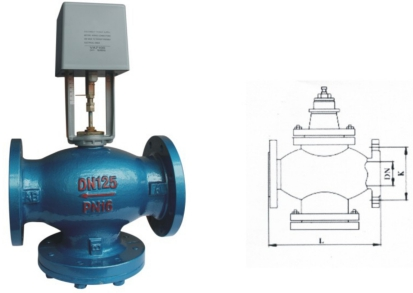

JSF-7000H series regulating valve body

Usage: JSF-7000H series of regulating valves are used for industrial and factory fluid control in air conditioning and ventilation heat treatment plants.

Structure: JSF-7000H series regulating valve includes valve body, valve cover, valve disc, valve stem, shaft seal and seal.

Technical Parameters

Nominal pressure: 1.6MPa

Body: Ductile iron

Disc: brass

Valve stem: 1Cr18Ni9

Shaft seal: brass

Flow characteristics: equal percentage or linear

Seal: EPDM rubber

Maximum fluid temperature: 120 ° C (high temperature requires special requirements)

Valve end specification: NP16 flange

Leaked Kvs: 0.03%

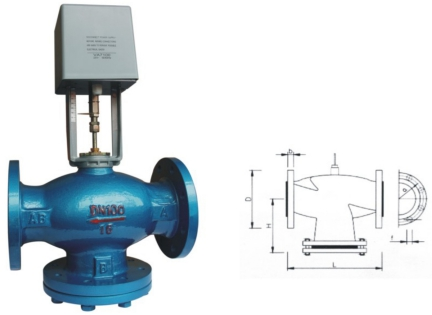

JSF-8000H series regulating valve body

JSF-8000H series regulating valve body

JSF-8000H series regulating valves are widely used in building self-control systems such as heating, ventilation, air conditioning and refrigeration.

JSF-8000H series regulating valve can adjust the flow rate of medium such as hot and cold water and steam to achieve the purpose of controlling temperature and pressure.

JSF-8000H series control valve can also be used in low temperature medium (ethylene glycol, etc.). For example, the temperature control system of a cold storage.

Technical Parameters

Nominal pressure PN (MPa): 1.6MPa, 2.5MPa, 4.0MPa, 6.4MPa

Comparable flow characteristics: equal percentage, straight line greater than 50

Leakage (according to FC170-2-1998): two-way single-seat valve and three-way valve less than Kv worth 0.01% two-way two-seat (balance) valve less than Kv worth 0.1%

Medium temperature / upper bonnet type - heat dissipation / -10 ° C - 150 ° C; high temperature / greater than 250 ° C

Body material: cast iron

Spool, seat material: stainless steel

Stem material: stainless steel

Sealing material: spring self-compensating +V-type sealing assembly (composed of copper spring seat and PTFE, high temperature double seal)

DZX-30 series electric heating actuator / electric thermostatic control valve

Overview

Switch or PDM execution control for small valves

For the double-position and stable control of the closed loop valve of the water temperature system or the central air-conditioning water system, directly install the water return pipe or the thermostatic valve body of the water separator in the water temperature heating system, the actuator is powered off, the valve Turn it on or off.

Characteristics

Paraffin propeller, driven by PTC heating.

With spring reset function, the valve opens or closes after power off.

Work runs without noise.

The nut connection installation method is simple, quick and easy to disassemble.

Technical Parameters

Voltage: AC24V 110V 230C (220V)

Power consumption: 2VA

Thrust: 110N

Stroke: 3mm

Full time: 3-5min

Connection size: M30*15mm nut

Ambient temperature: -5-60 ° C

Lead length: 900mm

Shell material: flame retardant PC (internal parts are flame retardant reinforced PA66)

Shell protection rating: IP40

Mounting position perpendicular to 85°tilt angle

JS-J1001 stainless steel air conditioning bellows (copper joint)

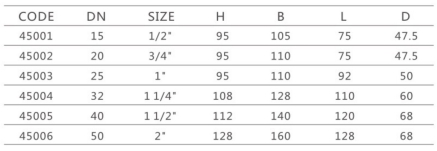

JS-J1003 stainless steel braided tube (copper nut)                                                                                                                 JS-H801 Brass Filter

JS-1901 Digital lock balance valve

specifications

1. Nominal pressure: 1.6MPa

2. Working medium: water, oil, gas

3. Working temperature: -20°C-120°C

4. Pipe thread complies with ISO228 standard

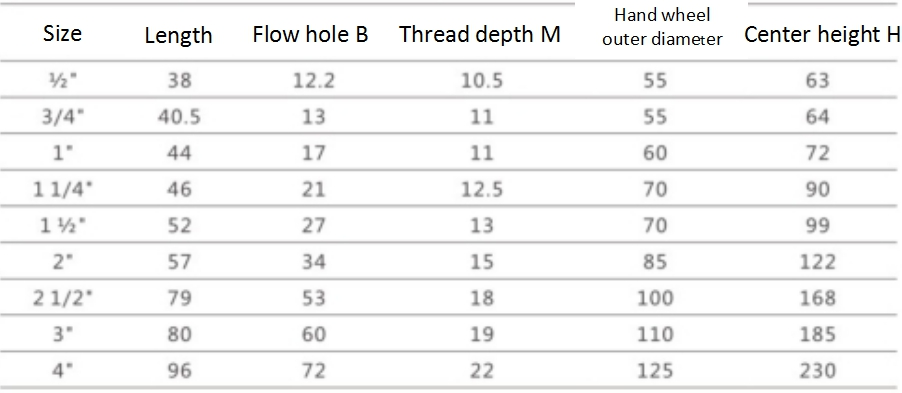

JS-A106 Brass gate valve

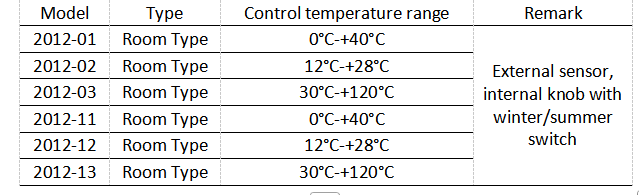

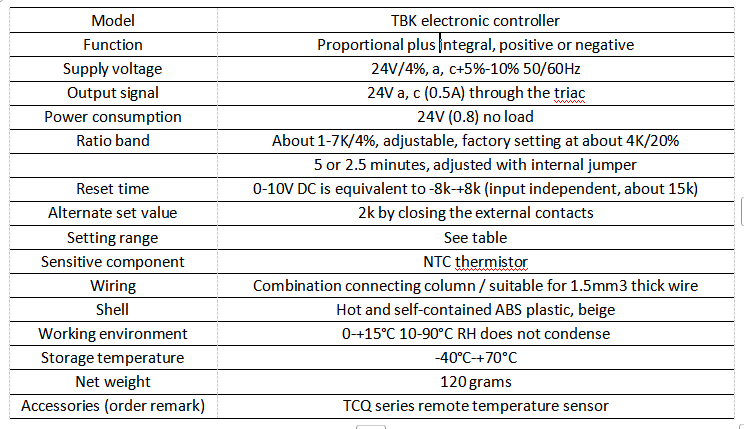

TBK 2012 Proportional Integral Thermostat

TBK 2012 system integral temperature controller for central air conditioning, temperature and cooling systems. When the TCQ system temperature sensor detects a change in the load of the controlled environment, the thermostat generates a incremental output signal with a proportional plus integral control algorithm to adjust the reversible motor driver.

Features

Built-in or remote variable resistance temperature sensitive component (NTC thermistor)

The model with a clear set value has a transparent snap-on dial cover to prevent unauthorized personnel from changing the set value.

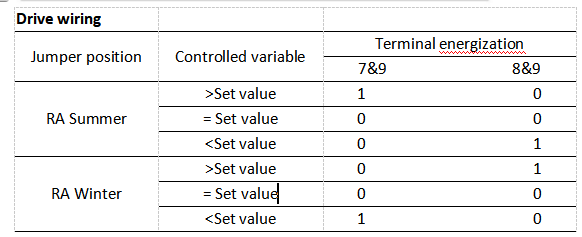

The output is convertible: forward or reverse (summer/winter), via local internal connectors or remote centralized switches (or SPST contacts as needed)

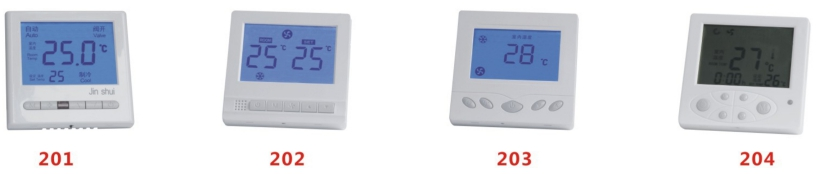

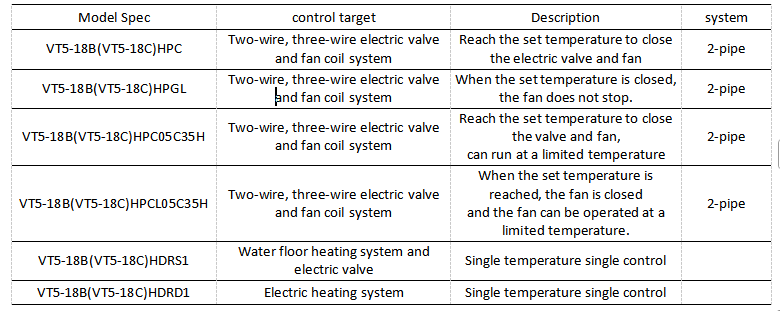

JS5-18B JS5-18C series liquid crystal display thermostat controller

JS5-18B JS5-18C series liquid crystal display thermostat controller is used for the two-controlled fan coil water system, and can also be used for the ventilation series to control the opening and closing of the damper. Because the main technology of this controller is from American Wharton, its reliability and anti-interference are very good, it can directly drive 220VAC 7A or above relays, which is the performance that can not be achieved by similar products of other companies in mainland China.

Technical Parameters

Voltage: 220VAC 110VAC 24VAC

Self-consumption power: <1.5W

Temperature range: 5-35 ° C

Temperature measuring element: thermistor

Antifreeze function: ≤5°pneumatic antifreeze function (can be set)

Energy-saving function: The minimum temperature can be set during cooling, and the maximum temperature can be set during heating.
